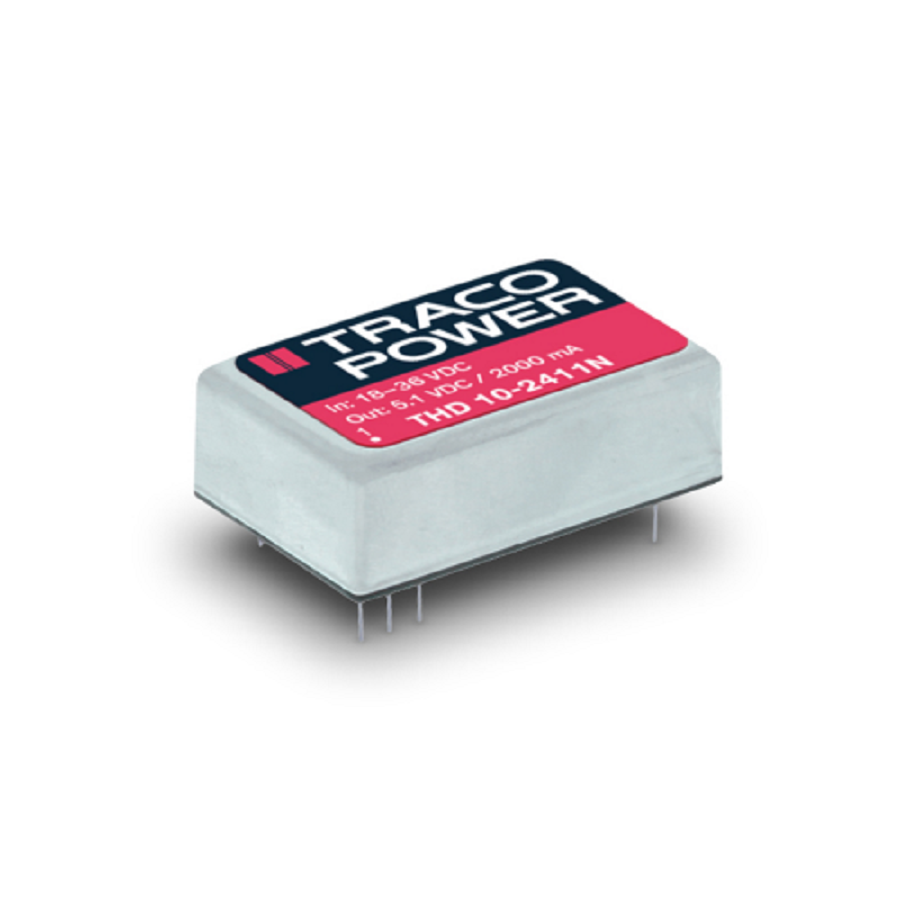

THD 10-2412N
Manufacturer:
TRACO Power
Mfr.Part #:
THD 10-2412N
Datasheet:
Description:
Board Mount Modules DIP-24 Through Hole Voltage - Output 1:12 V 87 %
| Parameter | Value |
|---|---|
| Length | 31.8 mm |
| Width | 20.3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Power Rating | 10 W |
| Height | 10.2 mm |
| Packaging | Tube |
| Depth | 10.2 mm |
| RoHS | Non-Compliant |
| Weight | 17.3 g |
| Features | Remote On/Off, OCP, SCP |
| Min Input Voltage | 18 V |
| Output Current | 833 mA |
| Output Voltage | 12 V |
| Max Output Current | 833 mA |
| Max Input Voltage | 36 V |
| Number of Outputs | 1 |
| Isolation Voltage | 1 kV |
| Output Power | 10 W |
| Efficiency | 87 % |
| Voltage - Output 1 | 12 V |
| Max Input Current | 15 mA |
| Nominal Input Voltage | 24 V |
Stock: 15
Distributors
pcbx
pcbxUnit Price$17.29693
Ext.Price$17.29693
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $17.29693 | $17.29693 |
| 10 | $16.62154 | $166.21540 |
| 25 | $16.61091 | $415.27275 |
| 50 | $16.60029 | $830.01450 |
| 100 | $16.58991 | $1658.99100 |
